380V Automatic Aerosol Can Making Machine With CE Certification

Brand Name : Delicacy

Model Number : DP-83

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : Western Union, T/T, L/C

Supply Ability : 15SETS/Month

Delivery Time : 30-90

Packaging Details : Wooden Box/ Customized

Color : Customized

Automatic : Yes

Voltage : 3-phase 380V 50Hz

Condition : New

Warranty : 1 Year

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support

Type : Aerosol Can Making Machine

Product name : Aerosol Tin Cans Making Machine

Contact Now

Aerosol Tin Cans Making Machine
Can add pre-necking station, suitable for various tinplate , especially for DR material . Vertical design makes it easy to connect with other machine. Equipped with Recyclable central lubricating system . Use inverter for various speed control Fully automatic control system. Multi-safety design for machine and operator’s safety. No-can, no-cover protection system. Equipped with two separating knives on cone and dome magazine. With safety cover and automatic height adjuster.
380V Automatic Aerosol Can Making Machine With CE Certification
Function
Dia. range
Height range
Max speed
Pre-necking ( For DR material)
45-73mm
90-320mm
400CPM
Necking + flanging
45-73mm
90-320mm
400CPM
seaming
45-73mm
90-320mm
400CPM

380V Automatic Aerosol Can Making Machine With CE Certification

Capacity:
Tinplate thickness
Diam of copper wire
Welding speed
Welding frequency
500 cans/min
0.16-0.30
1.38mm or 1.50mm
9-57m/min
100-650hz
Can Dia
Can height
Can height
Overlap
Transformer Power
φ52-153
52-99
60-320mm
0.4mm
150Kw
Side stripe powder coating system
Characteristics:
Steady even application Clean and clear side stripe No powder dropping and splashing No environmental pollution, No powder leaking
380V Automatic Aerosol Can Making Machine With CE Certification
380V Automatic Aerosol Can Making Machine With CE Certification
380V Automatic Aerosol Can Making Machine With CE Certification

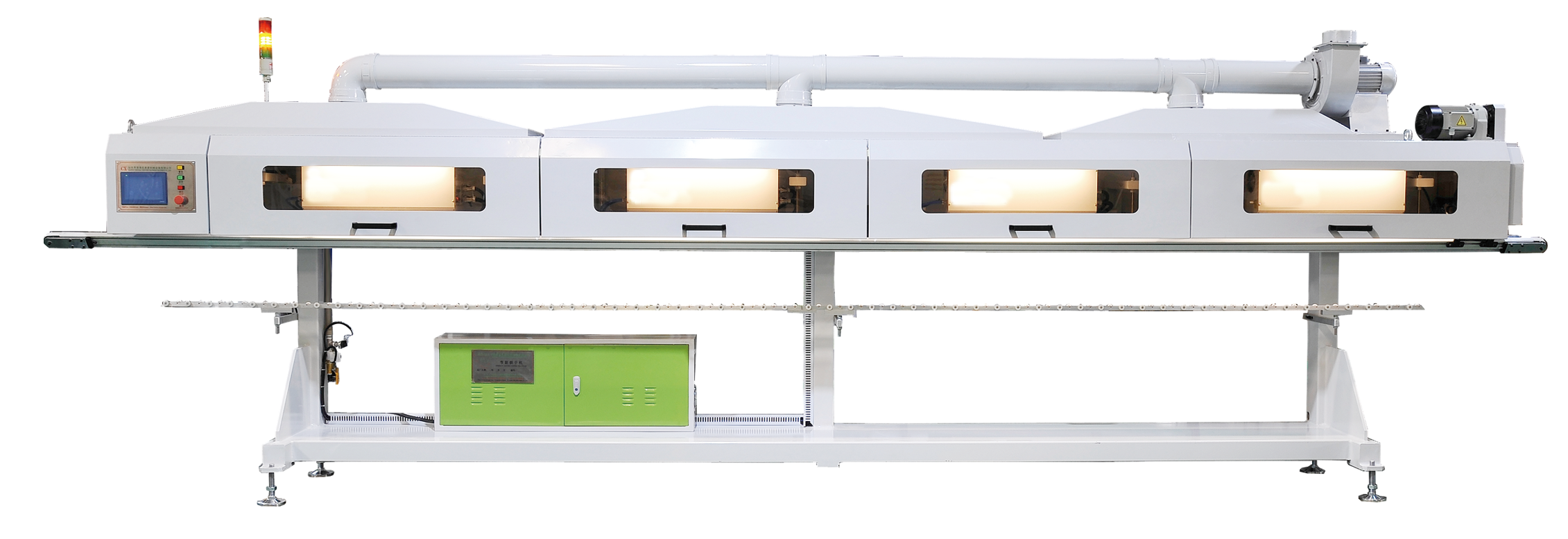

It works based on the SPWM technology, generating vortex heating by A/C on the welding seam area for curing . Induction oven is characteristic with energy saving , environment-friendly & safety. It fits different can sizes and different speed of production line.
Output frequency
Diameter
Max power
Cooling type
20-30Khz
52-180mm
1.5Kw/ heating coil
Air cooling / water cooling

380V Automatic Aerosol Can Making Machine With CE Certification

Non-destructive testing

Imported European high precision transducer, more reliable Equipped with temperature compensation system to improve accuracy With more humanized interface for operation With automatic height adjustment to make changeover more easy

380V Automatic Aerosol Can Making Machine With CE Certification
